Pedestal Actuator Standard Duty 85872

3D Model Purchase

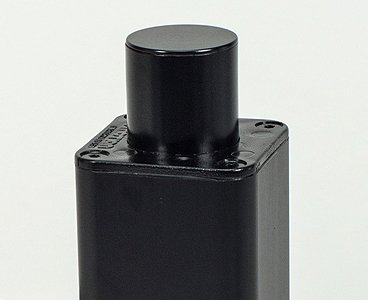

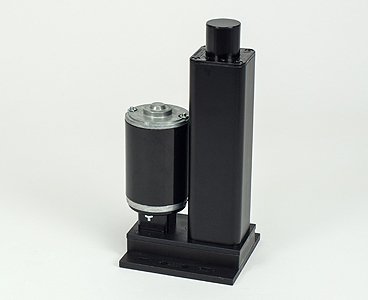

The Motion 85872 Pedestal Actuator is designed to provide a rigid aluminum/steel telescoping mechanism along with a base mount in one integrated unit. For antirotation and support, the inner tube runs on two engineered plastic bearings.

The Motion ball screw is housed in the inner tube and driven through a 10:1 spur gear reduction in the base. Because of the integral freewheeling at stroke ends, limit switches are not required. Generally the 85872 is recommended for compressive loads up to 500 lbs.

View Wiring


VIEW PDF


Technical Data Pedestal Actuator 85872

LOAD CAPACITY

500 lbs. (dynamic)
1000 lbs. (static)
Note: 500 lb. load rating is in compression and can be extended in certain applications.

STROKE

Any stroke length may be specified up to 30".
Available in inches or millimeters, with no limitation on interim dimensions.

STROKE SPEED

AC Motors:

115, 220 VAC 1500 RPM
115, 220 VAC 3200 RPM


.55/.45
1.10/.90




DC Motors:

12, 24 VDC (PM) 3000 RPM
12, 24 VDC (PM) 6000 RPM
115 VDC (PM) 6000 RPM

Note: Stroke speeds are in./sec/ with no load speed shown first and 500 lb. load speed shown second.





.90/.70
1.80/1.35
1.80/1.35


GEAR RATIOS

10:1

MOTORS

AC Motors:

1) 115 VAC 60/50 Hz., Permanent Split Capacitor Induction, 3.3 diameter, 1500 RPM, intermittent duty cycle (25%), 3 wire, enclosed construction, automatic reset thermal overload protector, UL, CSA recognized, 1.6 amps no load, 1.7 amps at 500 lbs., 18 MFD electrolytic capacitor supplied.

2) 115 VAC 60/50 Hz., Permanent Split Capacitor Induction, 3.3 diameter, 3200 RPM, intermittent duty cycle (25%), 3 wire, enclosed construction, automatic reset thermal overload protector, UL, CSA recognized, 1.3 amps no load, 1.9 amps at 500 lbs., 30 MFD electrolytic capacitor supplied.

3) 220 VAC 60/50 Hz., Permanent Split Capacitor Induction, 3.3 diameter, 1500 RPM, intermittent duty cycle (25%), 3 wire, enclosed construction, automatic reset thermal overload


protector, UL, CSA recognized, 1.0 amps no load, 1.1 amps at 500lbs., 6 MFD oil filled capacitor supplied.

4) 220 VAC 60/50 Hz., Permanent Split Capacitor Induction, 3.3 diameter, 3200 RPM, intermittent duty cycle (25%), 3 wire, enclosed construction, automatic reset thermal overload protector, UL, CSA recognized, .9 amps no load, 1.3 amps at 500 lbs., 10 MFD oil filled capacitor supplied.

5) 115 VAC 60/50 Hz., Permanent Split Capacitor Induction, 3.8 diameter, 1500 RPM, continuous duty, 3 wire, enclosed construction, automatic reset thermal overload protector, UL, CSA recognized, .6 amps no load, .8 amps at 200 lbs., 10 MFD oil filled capacitor supplied.

MOTORS

DC Motors:

1) 12 VDC Permanent Magnet Brush, 3.0 diameter, 3000 RPM (no load), intermittent duty cycle (60%), 2 wire, enclosed construction, 2 amps no load, 14 amps at 500 lbs.

2) 12 VDC Permanent Magnet Brush, 2.5 diameter, 6000 RPM (no load), intermittent duty cycle (60%), 2 wire, enclosed construction, 6 amps no load, 24 amps at 500 lbs.

3) 24 VDC Permanent Magnet Brush, 3.0 diameter, 3000 RPM (no load), intermittent duty cycle (60%), 2 wire, enclosed construction, 1 amp no load, 7 amps at 500 lbs.


4) 24 VDC Permanent Magnet Brush, 2.5 diameter, 6000 RPM (no load), intermittent duty cycle (60%), 2 wire, enclosed construction, 3 amps no load, 12 amps at 500 lbs.

5) 115 VDC Permanent Magnet Brush, 2.5 diameter, 6000 RPM (no load on rectified 115 VAC), intermittent duty cycle (60%), 2 wire, enclosed construction, 1.1 amps no load, 2.5 amps at 500 lbs.

BALL DRIVE

Epicyclic Ball Screw with integral freewheeling at ends of stroke.

Screw OD: .653

Screw root dia.: .562
Advancement/rev: .187

Materials: heat treated alloy steel with bearing races Rockwell 56C.

Efficiency: 90%

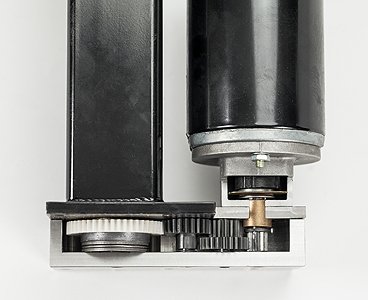

GEAR REDUCER

Two stage gear type with roller thrust bearing to accommodate ball screw thrust.

Base Housing: aluminum alloy

Bearings: Ball Drive shaft and pinion supported on sleeve bearings. Gears run on hardened steel shafts.
Gear materials: steel pinion, nylatron and delrin gears.

Motor coupling: 70 durometer neoprene with two heat treated steel inserts.

Lubrication: permanently lubricated with synthetic grease.

WEIGHT

12.8 lbs. (6 in. stroke with AC motor) 12.1 lbs. (6 in. stroke with
DC motor – 3.0 dia. PM)
