Linear Actuator 85615 / 85616
The Motion 85615/85616 Linear Actuator provides a miniature package for operating loads up to 100 lbs.

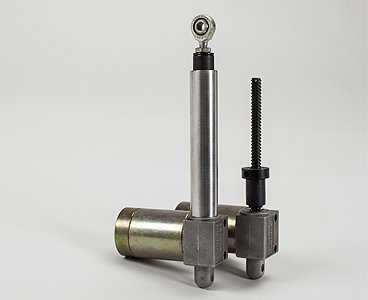

The basic construction incorporates the Motion Ball Screw which is a high efficiency .331 diameter Epicyclic Ball Screw with integral freewheeling at stroke ends to eliminate limit switches. Both 12 VDC and 24 VDC are available. The 85615 uses a translating tube for mounting, while the 85616 is an open screw type unit where attachment is made directly to the ball nut.
Technical Data Linear Actuator 85615/85616 |
||||||||
|
LOAD CAPACITY |
100 lbs. (dynamic) 600 lbs. (static) Note: 100 lb. load rating can be extended in certain applications. |
|||||||
|
|
||||||||
|
STROKE |
Any stroke length may be specified up to 18". Available in inches or millimeters, with no limitation on interim dimensions. | |||||||
|
|
||||||||
|
STROKE FEED |
DC Motors: Gear Ratio 12,24 VDC (PM) 7500RPM Note: Stroke speeds are in./sec with no load speed shown first and 100 lb. load speed shown second. |
|
||||||
|
|
||||||||
|
GEAR |
7.5:1, 15:1, 30:1 | |||||||
|
|
||||||||
|
MOTORS |
DC Motors: 1) 12 VDC Permanent Magnet Brush, 1.6 diameter, 7500 RPM (no load), intermittent duty cycle (60%), 2 wire, enclosed construction, .4 amps no load, 3.4 amps at 100 lbs. with 15:1 ratio. |
2) 24 VDC Permanent Magnet Brush, 1.6 diameter, 7500 RPM (no load), intermittent duty cycle (60%), 2 wire, enclosed construction, 2 amps no load, 1.7 amps at 100 lbs. with 15:1 ratio. |
||||||
|
|
||||||||
|
BALL |

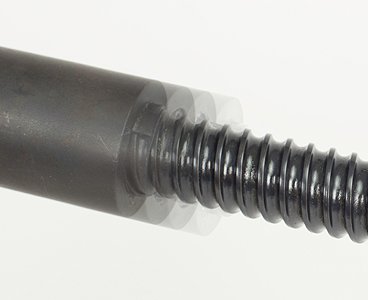

Epicyclic Ball Screw with integral freewheeling at ends of stroke. Screw OD: .331 Screw root dia.: .280 Advancement/rev.: .125 Centerline pin dimension: .957 + stroke Nut OD: .625 |
Nut mounting: 9/16-18 thread. Materials: heat-treated alloy steel with bearing races Rockwell 56C. Efficiency: 90% |
||||||
|
|
||||||||
|
GEAR REDUCER |

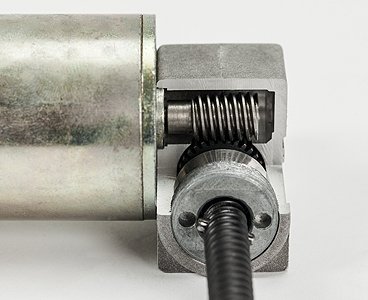

Single stage worn gear type with 626 ball bearing to accommodate ball screw thrust. Housing: die cast aluminum alloy. Bearings: Ball Drive shaft supported on sleeve bearing and ball bearing. |
Worm and gear materials: heat treated steel. Lubrication: permanently lubricated with synthetic grease. |
||||||
|
|
||||||||
|
WEIGHT |
85615: 1.3 lbs. (6 in. stroke) | 85616: 1.0 lbs. (6 in. stroke) | ||||||
